Can Solar Panels Run Air Conditioning?
Solar power has been the key to exploring sustainable energy options for powering a more hopeful future. With the global inclination towards solar growing manifold in the last decade, it has turned out to be quite a popular and feasible choice for power use among various households worldwide. Being one of the major contributors to household power consumption, among the very first questions that might hit your mind as you look at moving to solar might be: Can solar panels run air conditioning? Well, the answer is a yes, but for you to judge your needs and expectations accurately, there are some factors and considerations of which you shall get into below! Let’s quickly go back to what we know about Solar Power and Solar Panels.
What is Solar Power?
As the name suggests, Solar Power harnesses the energy of the sun to produce electricity or heat. It is a renewable source of energy that’s independent of fossil fuels, hence contributing to de-carbonization.
Solar Power can further be divided into two types–Photovoltaic systems, using solar PV panels to convert the Sun’s energy in the form of sunlight into electricity for consumption, and Solar thermal systems, which use the Sun’s energy to heat a fluid that may then be used to generate either hot water or steam.
Solar Photovoltaic energy is the more common application out of the two and is used both for residential and commercial purposes extensively.

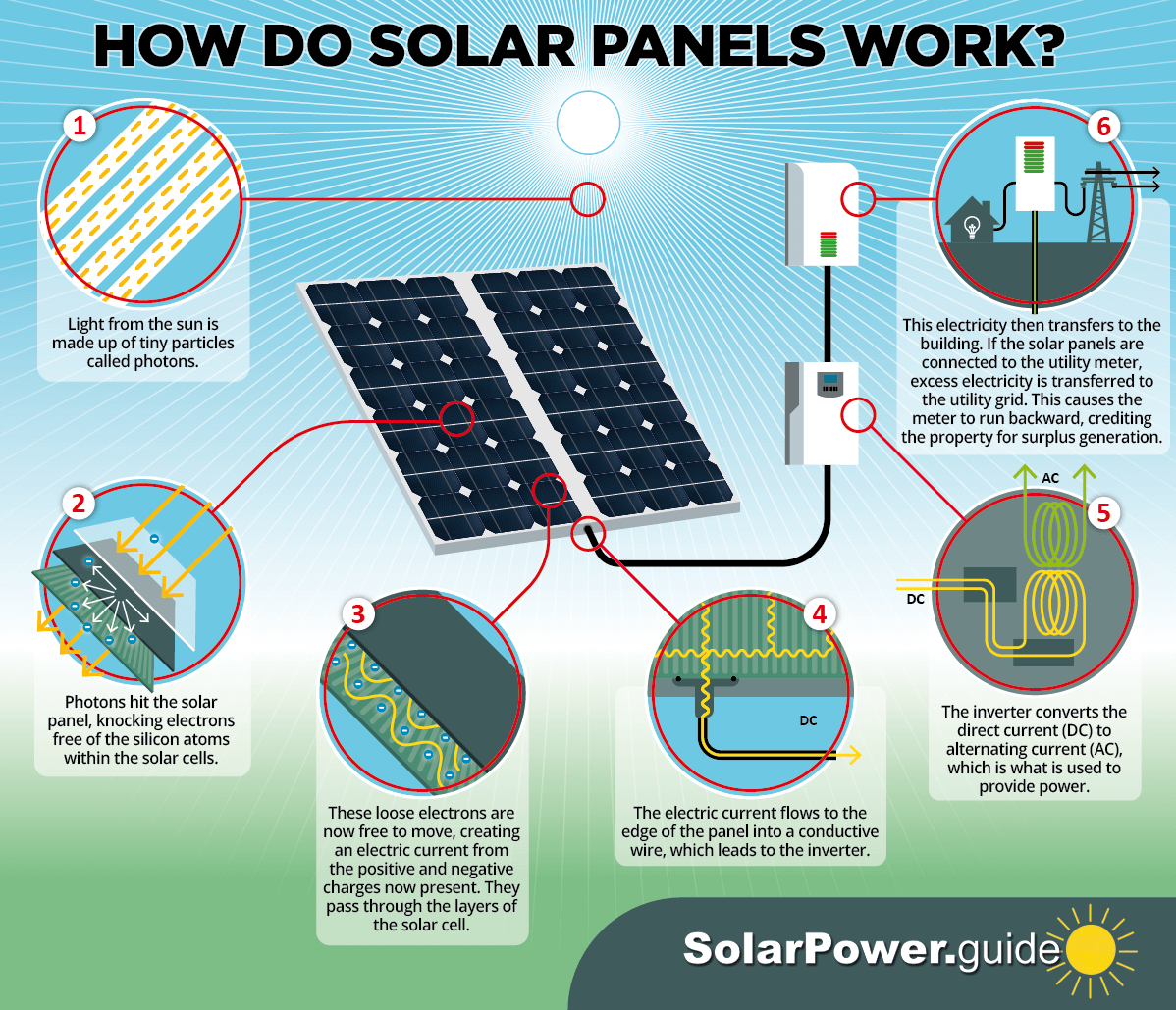

How Solar Panels work-
The solar panels are made up of many solar cells linked together. A solar cell is constituted of silicon, which is a kind of semiconducting material, that on receiving sunlight, energizes the Silicon atoms which release some electrons due to the excitement that establishes the current. This current is conducted outside the cell, and it is directly used in different applications.
There are two things related to Solar PV panels that you need to be aware of.
- Efficiency: The efficiency of the solar panel is what defines the ability to convert sunlight received into electricity. Most residential solar panels range from 15 to 20%.
- Components: PV Solar Systems usually have 2-3 components: Solar Panels, inverters to convert DC (direct current) to AC (alternating current) for usage, and some form of battery storage to store the energy for later usage.
Now that we have a general understanding of Solar Power and Panels, let us understand Air Conditioning and its energy demands.
Understanding the energy needs of Air Conditioning
Air Conditioning Systems are purposely designed to make indoor areas cool by removing the hotness of the air and humidity and replacing it with cool air which it pumps using coils and compressors.
The working capacity for cooling and efficiency of an Air Conditioning unit depends on several factors like the size of the room where the system has been installed, insulation, place, climate, and unit size and type.
In addition, the type of AC impacts the amount of energy required and hence the electricity costs. It is important to know the efficiency, size, and energy consumption of different types of AC units to estimate the percentage of household consumption taken up by the AC units and henceforth, the number and capacity of the solar panels it needs.
| Type of AC | Characteristics/Ideal for | Average Energy Usage |
|---|---|---|
| Central AC | Large size and energy usage, used for large spaces/entire homes | 3500 Watts |
| Split AC | An indoor unit with an outdoor compressor used for larger rooms | Ranges between 750W(0.75 ton AC) to 1900W(2 ton AC) |
| Window AC | A single unit is the least effective of the types. Used for smaller spaces | Ranges between 500W(0.75 ton AC) to 1440W(2 ton AC) |
Different systems that can be used for solar power supply for air conditioning:
Smooth functioning and a consistent current supply is essential for the AC to work properly. This can be taken care of with the help of sturdy solar panels and an efficient converter system. Further, you can decide whether you will use an on-grid, off-grid, or a hybrid energy supply to power your air conditioning system.
On-Grid: Also known as AC-powered solar air conditioners, the On-Grid type will require an inverter. There will be the installation of solar panels and an inverter together with your existing AC unit of this type. The inverter plays one very important role, and that is the process of converting all DC output from your solar panels to AC, which the air conditioner will use when it has passed through the inverter.
| Pros | Cons |
|---|---|
| Linked to the grid, eliminating the need for battery storage | The system will be affected in case of a power outage |
| Excess power generated can be fed back to the grid | A backup battery may be needed to sustain power during nighttime. |
Off-Grid: An off-grid, otherwise known as direct current-powered solar, works so that the AC is directly powered by solar energy stored in a battery. The AC operates as a stand-alone in the off-grid configuration. The solar panel, inverter, and battery would also be installed with the current AC unit.
| Pros | Cons |
|---|---|
| Easy installation and maintenance | Extensive battery bank required to support nighttime operation |
| Suitable for remote locations. | The capacity of battery storage(like Tesla, and Sonnenbatterie) can be limited |
Solar-Powered AC: There are various types of solar-powered air conditioners namely;
1) DC (direct current),
2) AC (alternating current),
3) Hybrid Models
The most efficient type that is suitable for Off-grid use is DC because this particular air conditioning system type will directly link to your solar panels. It can even handle battery operation, but using the system at night would require an inverter and battery.
The AC(alternating current) system, as an advantage, can shift to grid power as a backup when your solar production is below the acceptable threshold
The hybrid AC will automatically handle the solar array and grid sources based on the power generation and load the solar panel or the system faces. This smart and intuitive technology will ensure maximum efficiency in all cases.
Calculating Power Usage to Run AC with Solar Panels:
Larger PV systems can have a battery bank where surplus energy generated by the solar panels is stored and used to cool the house during the night. Solar panels work most efficiently in the presence of direct and unobstructed sunlight The average power output of solar panels corresponds to the power generation from PV modules at maximum efficiency for 4-8 hours. This number can change as the solar index is different in different states.
For instance, if you operate in the state of sun generation such that the sun’s peak hours will amount to 4 to 6 hours, running the entire air conditioner at 1.5 tonnes for 8 hours daily would lead to consumption amounting to 6.3 kWh. To meet the need, a PV system of about 2 kW could be required. A system like this will not only meet the entire energy demand required to run the air conditioner during the daylight hours but also store excess power to be used for the remaining 8 hours.
To run your air conditioning using the solar panels, you will be required to ensure that the solar panels produce a similar total wattage. The general idea is to divide the total wattage produced by the AC by the wattage of the solar panels you intend to use. For instance, the average household produces a wattage of 3,500 watts from the AC, and with an average watt of 250 on the standard solar panel, you can do this by 3,500 (AC) / 250 (panel) = 14 panels.
But climate, location, type, model, wiring, and many other real-world factors can influence the true energy output of your solar panels which can vary from the calculated estimate.
Factors to consider before using rooftop solar installations to power your AC:
Investments: The investment in a home under a solar power system or a new air conditioner powered by the sun could be different. Both have the value of overall savings, and it is generally quicker to have a complete solar panel system in terms of investment return, as it allows you to power green energy into many of the appliances in your home.
Location and Climate: Climate and location are probably the most important factors Warmer temperatures would mean that the AC is used more thereby requiring more electricity. On the other hand, the energy derived from solar panels depends on location, influencing insolation– sunny states like Arizona will possibly generate more electricity compared to upper Midwest states that come with a lot of cloud cover and snow.
Solar Power Required: Each of the AC units comes with a different tonnage, and the size of your home will specify the power requirement which markedly influences the amount of potential solar power needed to run the AC efficiently. Moreover, if you choose an Off-grid system, you have to ensure you maintain a vast amount of battery storage to keep the power supply constant during night/during periods of lower amount of sunlight.
Conclusion:
As we work to shrink our carbon footprints and reduce our energy costs, the allure of solar power meeting our cooling needs has increased. Running an air conditioner on solar power is not just possible, it’s an eco-friendly choice, and in the long run, it’s a financially viable decision. You will be able to easily make several well-informed choices on implementing a solar power system by calculating the energy demand of your air conditioning unit and the capabilities of solar technology.
Finally, only an accurate assessment will enable you to employ the best-suited system that, in return, would provide multiple benefits in the form of cost, energy, and environmental benefits to you. You can further check our list of the Top Solar Companies(link) to understand how to pick the best company for solar installation as per your requirements, and ease your transition to solar!
Frequently Asked Questions (FAQs)
To estimate the number of solar panels required for your AC, you have to be mindful of the type of AC(window, central or split) and their energy requirements. You need to then divide the wattage needs of the AC by the average output of one solar panel(between 250W-400W) to find out the number of solar panels required.
In case you choose an Off-grid system or a Solar-powered air conditioner, you will need battery storage to store the energy generated during sunlight hours for use in the night/periods of low lights.
